Hikvision 8CH NVR 4K Hybrid Light ColorVu+IR POE CCTV Camera System 2-Way Audio
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5 Thumbnail 6 Thumbnail 7 Thumbnail 8 Thumbnail 9 Thumbnail 10 Thumbnail 11 Thumbnail 12 Thumbnail 13 Thumbnail 14 Thumbnail 15 Thumbnail 16 Thumbnail 17 Thumbnail 18 Thumbnail 19 Thumbnail 20 Thumbnail 21 Thumbnail 22 Thumbnail 23

Hikvision 8CH NVR 4K Hybrid Light ColorVu+IR POE CCTV Camera System 2-Way Audio

GBP 331.00
Condition: New
Category: Electronics
View on eBay Back to Home
Fast Shipping
Estimated delivery in 3-5 days
Easy Returns
30-day returns, buyer pays return shipping

★Tips

🌷Username：admin
     Password：Set on activation
🌷Phone App：Hik-connect
     PC Client：iVMS-4200
     Search Tool：SADP
       This camera is the oem Hikvision camera, it can be play and plug with Hikvision NVR.
And the NVR is the hikvision original one.

★Product Features

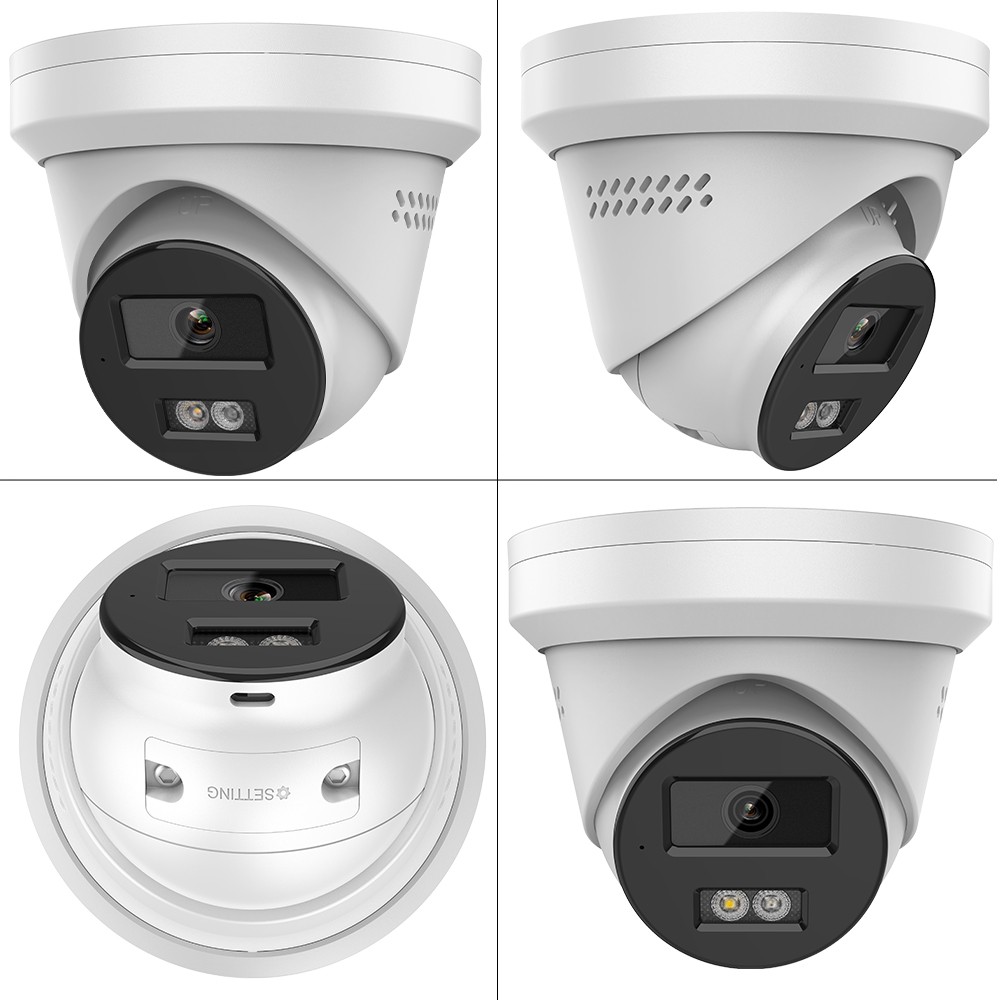

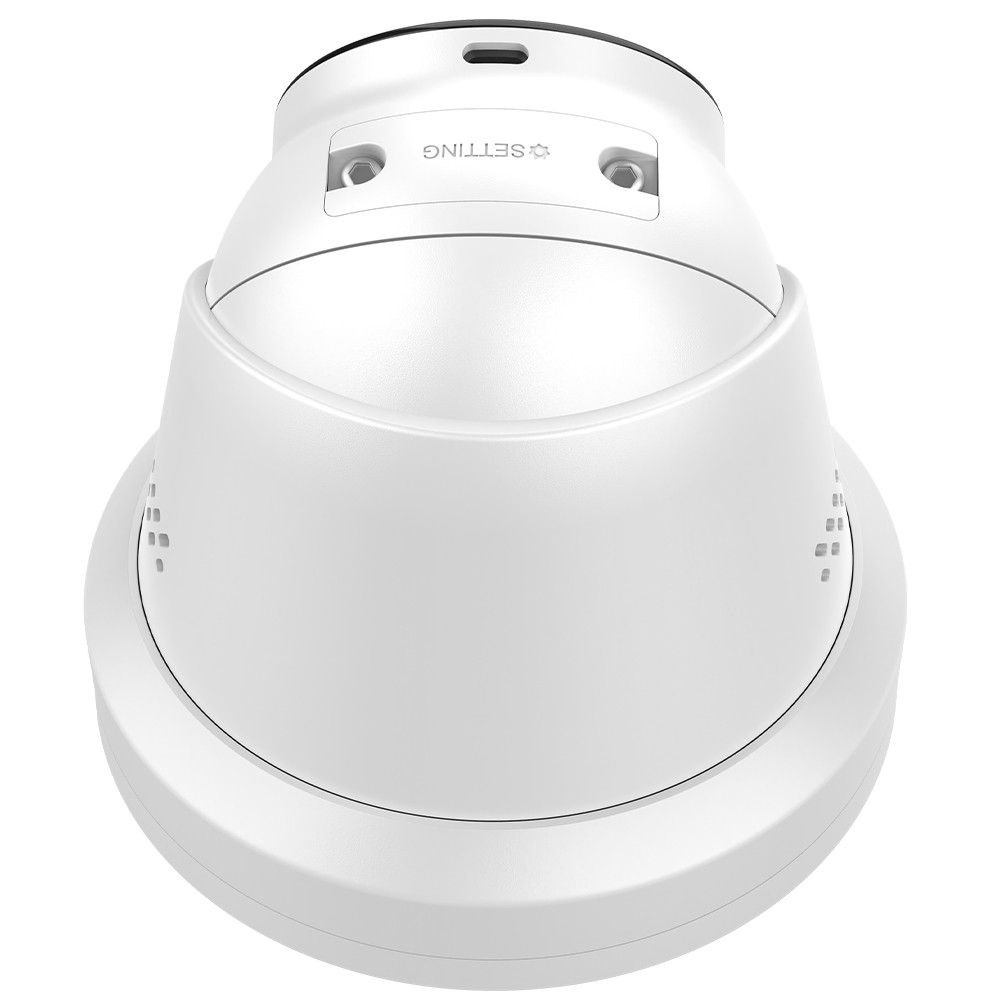

Hikvision OEM 4K 8MP Smart Hybrid Light MD 2.0 Fixed Turret Network Camera

  • High quality imaging with 8 MP resolution
  • Support Human and Vehicle Detection
  • Smart Hybrid Light: advanced technology with long range light
  • Efficient H.265+ compression technology
  • Support on-board storage up to 512 GB (SD card slot)
  • Provide real-time security via built-in two-way audio
  • Support audio and siren alarm with red and blue flashing light
  • Water and dust resistant (IP67)

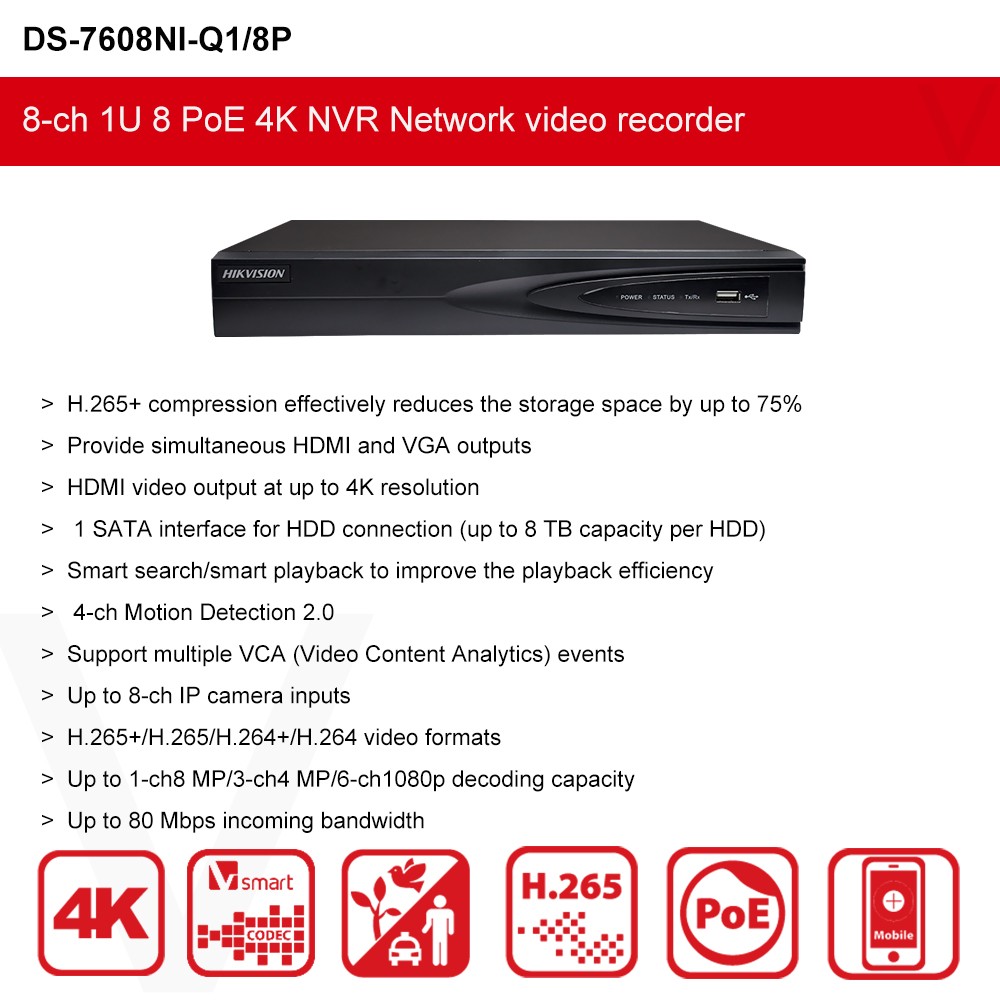

Hikvision 8-ch 1U 8 PoE 4K NVR
  • Up to 8-ch IP camera inputs
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
  • Up to 80 Mbps incoming bandwidth
★Product Specifications

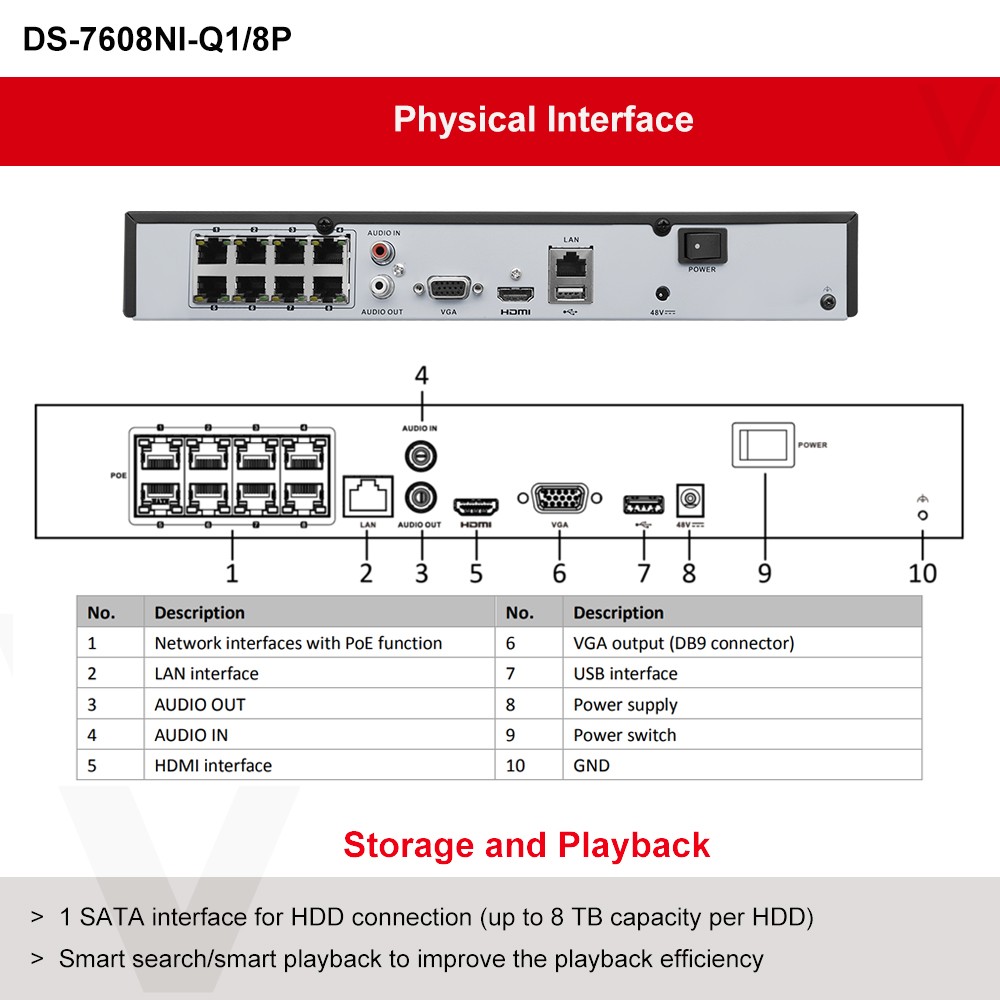

  • NVR: DS-7608NI-Q1/8P
    Video And Audio
    IP Video Input8-ch
    HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
    VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
    Video Output ModeHDMI/VGA simultaneous output
    Incoming Bandwidth80 Mbps
    Outgoing Bandwidth80 Mbps
    Audio Output1-ch, RCA (Linear, 1 KΩ)
    Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
    Decoding
    Decoding FormatH.265+,H.265,H.264+,H.264
    Decoding Capability1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
    Synchronous Playback8-ch
    Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
    Network
    Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
    Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
    PoE
    Interface8-ch
    Power≤ 75W
    RAID
    RAID TypeNo
    Auxiliary Interface
    SATA1 SATA interface
    CapacityUp to 8TB capacity for each disk
    USB Interface2 × USB 2.0
    General
    Power Supply48 VDC, 1.88 A
    Consumption≤ 10 W (without enabling PoE)
    Working Temperature-10 to +55º C (+14 to +131º F)
    Working Humidity10 to 90 %
    Chassis1U chassis
    Dimension (W × D × H)320 × 240 × 48 mm (12.4" × 9.4" × 1.9")
    ≤ 1 kg (2.2 lb)
Camera
Image Sensor1/2.4" Progressive Scan CMOS
Max. Resolution3840 × 2160
Min. IlluminationColor: 0.005 Lux - (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV

2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°

4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°

Lens MountM12
Iris TypeFixed
ApertureF1.6
DORI
DORI

2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m

4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m

Illuminator
Supplement Light TypeIR,White Light
Supplement Light RangeUp to 30 m
Smart Supplement LightYes
IR Wavelength850 nm
Video
Main Stream

50 Hz:

20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Region Of Interest (ROI)1 fixed region for main stream
Scalable Video Coding (SVC)H.264 and H.265 encoding
Audio
Audio TypeMono sound
Audio Sampling Rate8 kHz/16 kHz
Environment Noise FilteringYes
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Network
SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live ViewUp to 6 channels
APIOpen Network Interface (Profile S, Profile T, Profile G),ISAPI,SDK
ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP
User/Host

Up to 32 users

3 user levels: administrator, operator, and user

ClientiVMS-4200,HiLookVision
Web Browser

Plug-in required live view: IE 10, IE 11,

Local service: Chrome 80+, Firefox 80+, Edge 89+

Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Day/Night SwitchDay,Night,Auto,Schedule
Image EnhancementBLC,HLC,3D DNR
Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask4 programmable rectangle privacy masks
Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage



Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Built-In MicrophoneYes,1 built-in microphone
Built-In SpeakerMax. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
Reset KeyYes
Event
Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
LinkageUpload to FTP/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning,flashing light
General
Power

12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 9.5 W

MaterialMetal & Plastic
DimensionØ127.3 mm × 96.3 mm (Ø5" × 3.8")
Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
WeightApprox. 590 g (1.3 lb.)
With Package WeightApprox. 805 g (1.8 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
LanguageEnglish, Ukrainian
General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email
Flashing LightRed and Blue Light
Approval
EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7

Safety



CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017

Environment

CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006

ProtectionIP67: IEC 60529-2013
Package Included NVR+2 cameras
HDD Options no HDD
Brand Hikvision
Model DS-7608NI-Q1/8P
Type Complete System
Connectivity Wired
Surveillance Technology IP/Network
Features Mini Surveillance Camera, Multiple Language Support, Night Light, Night Vision, Outdoor/Weatherproof, Plug in, Wall Mounted, Waterproof, Smart Hybrid Light, MD 2.0, red and blue flashing light, Human and Vehicle Detection, storage up to 512 GB, built-in two-way audio, up to 512 GB (SD card slot), Support audio and siren alarm with red and blue flashing light, 4K, 8MP
Compatible Brand Hikvision
Location Outdoor & Indoor
Maximum Resolution 3840 × 2160
MPN IPC-T280HAP-LUF/SL, DS-7608NI-Q1/8P
Operating Sound Rating 120 dB
Colour White
Colour Mode Colour
Manufacturer Warranty 3 Years
Built-in Two-way Audio Yes
Flashing Light Red and Blue Light
Number Of Cameras Included 8
Number Of Zones 8
Items Included Camera, NVR, HDD, All optional
Storage Capacity 2TB, 4TB, Up to 8TB capacity for each disk not included
Number Of Channels 8
Incoming Bandwidth (NVR) 80 Mbps
